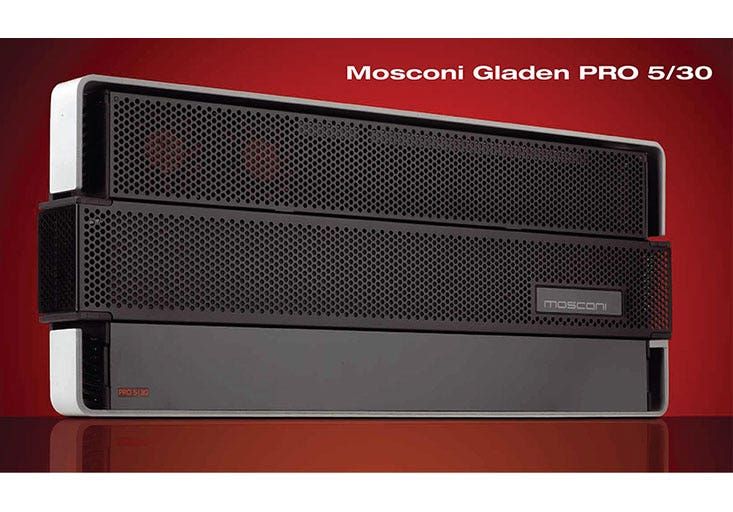

Mosconi Pro 5|30 5-Channel Class D Amplifier

Mosconi Pro 5|30 5-Channel Class D Amplifier

Specifications

Low Pass Filter: 40-220 Hz
Input Sensitivity (Power rating ref):
0.35V ÷ 12V (5.3V in DDSP mode) [CH1/2/3/4]
0.14V ÷ 5.9V (3.1V in DDSP mode) [CH5]

Xover Functions:
CH1/2= HP: 43 ÷ 500Hz(x1) or 430 ÷ 5000Hz(x10) [12 dB/oct – Q: 0.7]
CH3/4= HP: 50 ÷ 200Hz and LP:(430 ÷ 5000Hz) [12 dB/oct – Q: 0.7]
CH5= LP: 43 ÷ 200Hz [24 dB/oct]

Special Features:
Direct DSP (bypass all the preamplifier circuitry but the differential input interface)
High Level / Low Level selectable input
RTC input
Internally controlled via Atmel Processor

Size: 500 x 205 x 55 mm
Weight: 5,4 Kg

View/Download Full Specsheet: Mosconi Pro 5|30 Specifications
